Production Information
Title/ Author: Rock 'N' Roll Revival 2022
Production Date: March, 2022
Theatre:
Northfield Schools Concert Hall
Director: Ray Coudret
Choreographer: Shari Setchell
Musical Direction: Bob Gregory-Bjorklund, Craig Wasner
Scenery Design: Brian Bjorklund
Costumes: Tania Legvold, Nancy Johnson
Lighting Design & Production: Brian Bjorklund
Sound Design & Production: Roger Fette/ Fette Productions
Media Design:
Sofia Chilhade, Dell Wagner
Set Construction: Lead Set Builder- Brent Kivell
Song List: Link to List HERE
Program: HERE
View Production Images
• Click HERE for the Image Gallery

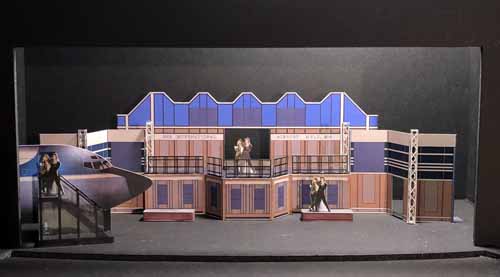

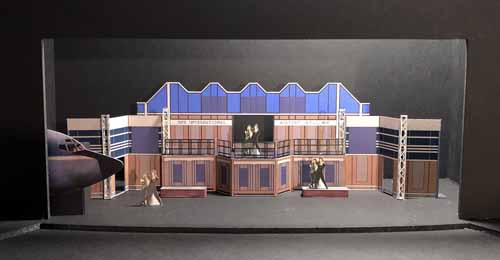

Click on the Scenery Model Image Gallery in the left sidebar FOR MORE IMAGES
Technical Drawings- PDFs
When printing, check the "scale" in the print dialog box to verify it is "100" percent.
• Scale Rulers Printable 1/8 & 1/4 Scale rulers (Be sure to print
at 100% size!)
• Floorplan Letter size 1/8" scale
• Back Wall Elevation Legal Size
•
Elevations: Stage Right & Left Legal Size
• Platform: Band-Plan View Legal Size
• Platform facing Walls Legal Size
• Platform Facing Walls DETAILS Legal Size
• Platform Trim and Railings 3D Legal Size
• Platform Railing Details Legal Size
• Platforms: Backup Singers Legal Size
• Jet Aircraft Framing & Details Letter Size
• Jet Aircraft Scaffold Attachment Letter Size
• Stair Unit Letter Size
Technical Drawings- Vectorworks
Download the free Vectorworks 2021 Viewer HERE
The viewer allows you to open the drawings, zoom in and out, take measurements
and print.
• Scale Rulers Printable 1/8 & 1/4 Scale rulers
• Floorplan
• Floorplan Letter size 1/8" Scale
• Back Wall Elevation
• Elevations: Stage Right & Left
• Platform: Band-Plan View
• Platform facing Walls
• Platform Facing Walls DETAILS
• Platform Trim and Railings 3D
• Platform Railing Details
• Platforms: Backup Singers
• Jet Aircraft Framing & Details
• Jet Aircraft Scaffold Attachment
• Stair Unit
Painter's Elevations
All painters elevations are LEGAL SIZE paper.
--> Colors shown on the Swatch Sheet and Cart are available locally at Menards.
Note: Every color printer renders color differently. Use these files for reference, but use hard copy printouts from the designer for critical color mixing & matching.
• Color Swatch Sheet Swatches of scenery colors and pre-mix paint names are included
• Color Chart Table formatted version. Includes Jet aircraft
colors.
• Back Wall
• Band Platform Surface • Drum Platform Surface & Facing
• Platform Facings
• Stage Left and Right Wall Units
• Jet Aircraft
Lighting Plot and Paperwork
• Light Plot- PDF 8 letter size pages- tape together!
• Light Plot- PDF a 24" x 36" page drawing.
Re-size as needed for printing.
• Light Plot- Vectorworks Version
Download the free Vectorworks 2021 Viewer HERE
• Section View Drawing of Stage- PDF Letter size
shows heights of electrics
• Section View Drawing of Stage-Vectorworks Version
• Channel Hookup- PDF
• Magic Sheet 1
• Magic Sheet 2 (Movers & Info)
• Magic Sheet Scenery
